Centre Steer Prototype

History

In 1947 Rover's engineering director Maurice Wilks, who ran a war-surplus Willys Jeep on his Anglesey farm, proposed a light agricultural 4x4 to earn Rover dollar-export income while its saloon business recovered. The prototype his team assembled in autumn 1947 (September per most accounts; October 1947 per historian James Taylor's study of the works photographer's negatives) was a hybrid: an 80-inch Jeep chassis, axles and transfer gearing carrying a Rover 1.6-litre four-cylinder engine and the four-speed gearbox from the Rover P3 saloon. Its signature feature was a tractor-style central steering position, chosen because it felt familiar to farmers, freed space either side of the driver, and promised to eliminate separate left- and right-hand-drive production.

In practice the centre-steer layout proved awkward, with poor legroom and clumsy controls, and by the end of 1947 the design team had settled on a conventional layout for the 80-inch production Land Rover launched at Amsterdam in April 1948. The prototype, by then unrepresentative of the production design, disappears from the record after January 1948. Taylor believes it was probably broken up; a competing tradition, recorded by the Dunsfold Collection, holds that it was converted back into a Jeep and used on the Wilks family estate. Either way no trace has ever been found, and the centre-steer remains the holy grail of Land Rover archaeology.

Because only period photographs survive, enthusiast Bill Hayfield ('Paintman Bill') built a fully working replica in the mid-2000s on the chassis, axles and steering of a 1942 Canadian-built Jeep, with a period Rover four-cylinder engine and four-speed gearbox and a chain-linked central steering position. The Dunsfold Collection subsequently acquired the replica and refined its details against newly discovered photographs of the original; it now represents the missing first Land Rover at shows and in the collection.

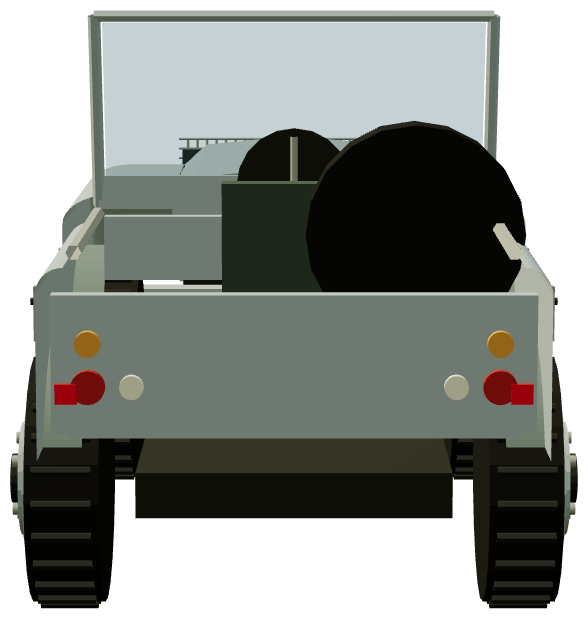

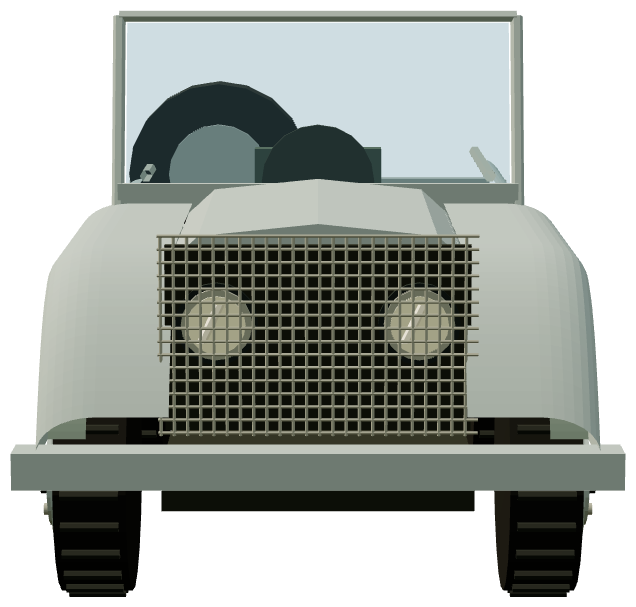

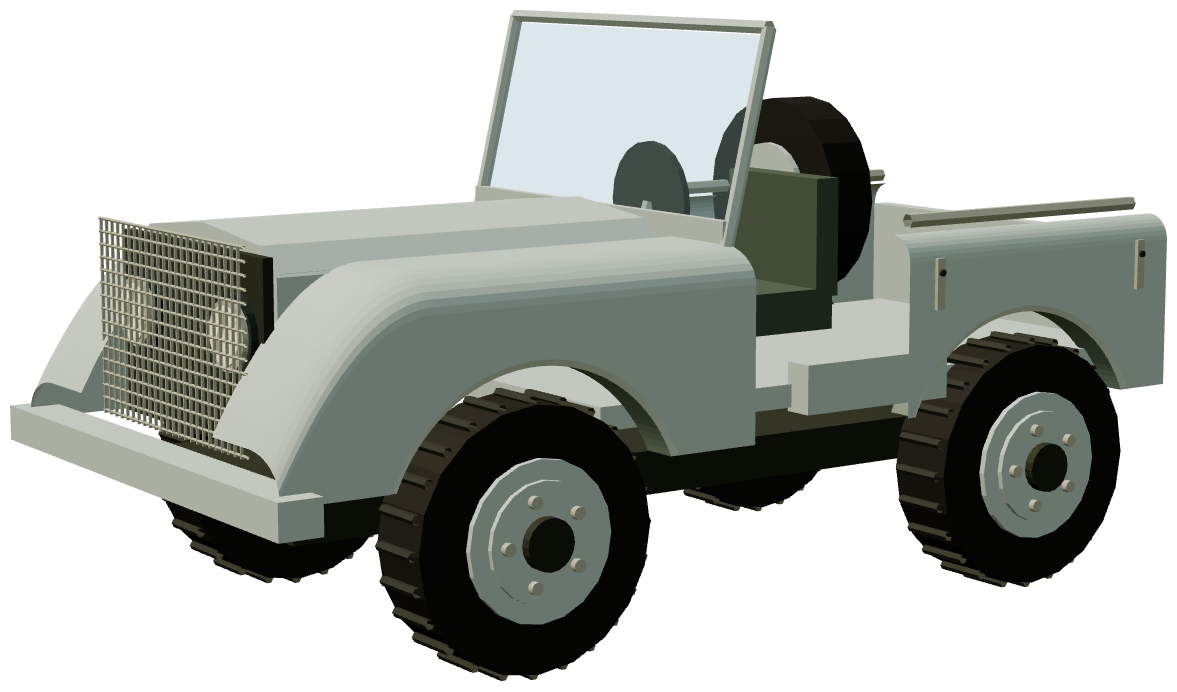

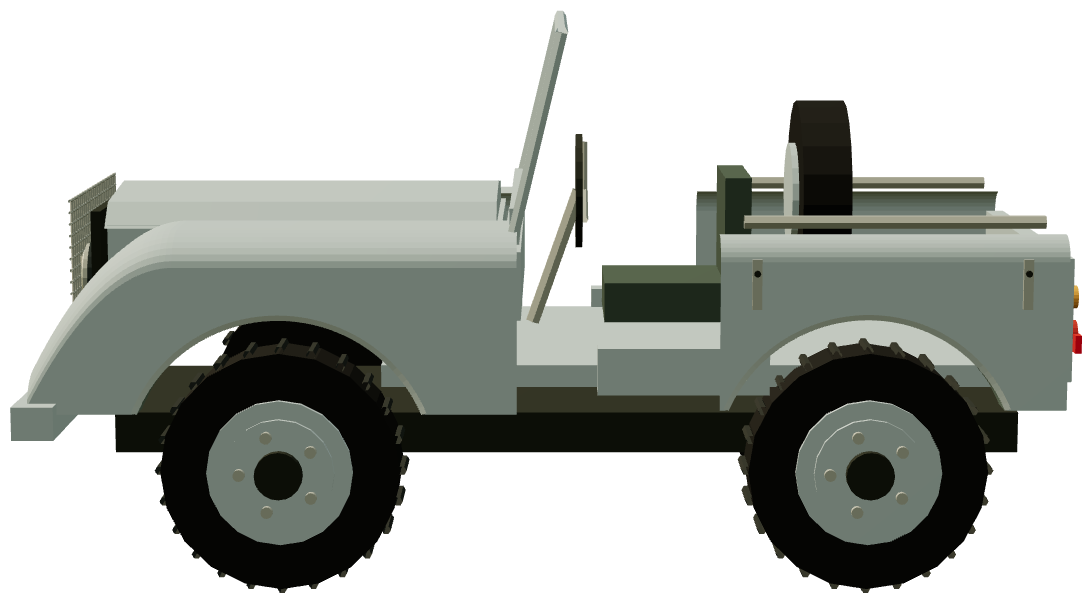

Imagery

Registry record

Manufacturer

Rover Company (experimental department)

Manufactured

single prototype, autumn 1947; replica built 2004-05

Engine type

1.6 L Rover petrol inline-four with Rover P3 4-speed gearbox (original); Jeep 2-speed transfer gearing

Production run

1 prototype (plus 1 later replica)

Current owner

The Dunsfold Collection (replica) ↗

Country of origin

United Kingdom

Status

original lost - probably scrapped in 1948, or by some accounts converted back into a Jeep; replica preserved

Catalogue data

Record kind

Named model

Wheels

4

Base catalogue fields are exported from the Difflocked game. In-game physics values are arcade tuning, not certified historical measurements, and are deliberately not shown as specifications here.

Sources & citations

Researched sources

• Centre Steer (prototype history: September 1947, Jeep chassis, Rover 1.6-litre engine and P3 gearbox, reasons for central steering, fate unknown, 2004 replica by Bill Hayfield) ↗ — Wikipedia (accessed 2026-09-10)
• 1947 Centre Steer Prototype - a replica of the first Land Rover ('Paintman Bill' replica on a 1942 Canadian Jeep; consensus that the original was reconverted back into a Jeep on the Wilks family estate) ↗ — The Dunsfold Collection (accessed 2026-09-10)
• Photographs of the Land-Rover Centre Steer Prototype - James Taylor (built October 1947 as an engineering 'mule'; disappears from the record after January 1948, probably broken up) ↗ — Land Rover Series One Club (accessed 2026-09-10)
