UK Marshal Body Ambulance

History

The British MoD's requirement for a light 4x4 ambulance on the Land Rover 109-inch chassis was first met by Mickleover Transport Co Ltd, which built the initial 'Ambulance, 2-stretcher, 4x4, Rover 7' (designation FV18044) in 1961-62 on the Series II 109. Marshall of Cambridge — the airframe and special-purpose-vehicle firm — took over production and became the dominant builder, mounting an extended and raised ambulance body on the standard MoD-specification 109-inch chassis of whatever Series was in production, mostly Series II/IIA and less commonly Series III.

The body was designed around air portability: overall height was kept low enough to fit inside RAF transport aircraft of the day, and a distinctive chamfered lower rear body improved the departure angle off-road. The interior carried stretcher or seated casualties (configurations are variously described as two stretchers, four stretchers and a medic, or up to eight seated), with the medical compartment separated from the driver's cab.

Roughly 2,000 first-generation Marshall-bodied ambulances were built from the late 1950s/early 1960s into the early 1980s, serving the Army, the RAF and the Royal Navy's Fleet Air Arm. They proved durable and long-lived, remaining in use through the Falklands and Gulf conflicts before the role passed to Defender 130-based ambulances; many survive in preservation.

Imagery

Registry record

Manufacturer

Land Rover (The Rover Company / British Leyland)

Manufactured

circa 1961 – early 1980s

Modifier / coachbuilder

Marshall of Cambridge (first examples by Mickleover Transport)

Production run

~2,000 vehicles

Country of origin

United Kingdom

Status

retired from service; many preserved

Catalogue data

Record kind

Named model

Model line

Series II

Family

marshal-body

Wheels

4

Nominal wheelbase

109″

Base catalogue fields are exported from the Difflocked game. In-game physics values are arcade tuning, not certified historical measurements, and are deliberately not shown as specifications here.

Related base model variants

• Meteor Works — Meteor Works Series III 109″ · St John Ambulance · Weathered Marshall body
• RAF Crash Rescue Marshall Ambulance — RAF Crash Rescue Marshall Ambulance Series IIA 109″ · Marshall body · Royal Air Force crash rescue

Sources & citations

Researched sources

• Military Land Rover Ambulances (Marshall first-generation 109-inch body, ~2,000 built, late Fifties to early Eighties) ↗ — Ex-Military Land Rover Association (EMLRA) (accessed 2026-09-10)
• Land Rover Ambulances (Mickleover Transport FV18044 Rover 7 of 1961-62; Marshall's of Cambridge production; air-portable height and chamfered rear body) ↗ — guide2landrover (archived) (accessed 2026-09-10)
• Military Vehicles - The Land Rover History (Series IIA 109 ambulance body by Marshalls of Cambridge; four stretchers and a medic) ↗ — winwaed.com (accessed 2026-09-10)

Development reference notes

• Marshall ambulance family — marshal-ambulance, meteor-works, raf-marshall-rescue · HERITAGE-FLEET-REFERENCES.md

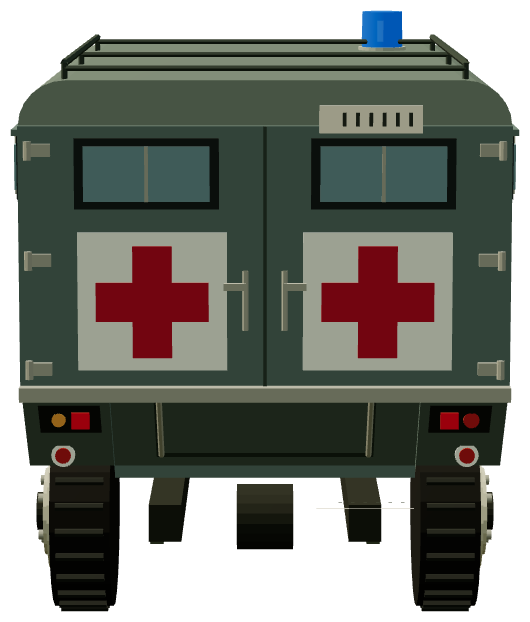

  The Series IIA 109-inch Marshall ambulance body is shared by the army ambulance, Meteor Works (Fan Favourites), and RAF Crash Rescue variants. The shared shell has an extended rear overhang, a broad low roof with rounded eaves, high side windows, paired rear doors, and a closed angled lower rear panel sweeping upward behind the rear wheel. The additional `images.jpeg` rear photograph establishes the full-width sloping panel, central folded hatch, recessed paired lamps and lower round reflectors; no deployed horizontal step is shown. Preserve these common body features when adding further liveries. RAF Crash Rescue uses the user-supplied TRP 291G photographs: dark blue body, yellow roof, waist stripes and bumper, white/red medical panels, CRASH RESCUE brow lettering, ROYAL AIR FORCE side lettering, amber roof beacon, paired blue front lamps, aerials and an outboard searchlight. Listed under UK military and Special Vehicles rescue/ambulance. Reference files supplied by the user: `imagesg.jpeg`, `imagesgdsgds.jpeg`, `kkk.jpeg`, `imagesll.jpeg`, `e6e0e10c51677d4b1471d6c1dc1de9cagdgs.jpeg`, and `imageshh.jpeg`. The final photograph also illustrates a later Series III Marshall-bodied ex

• [Production ambulance photographed by Steve Glover, 1981 vehicle](https://commons.wikimedia.org/wiki/File:Land_Rover_101_Forward_Control_Ambulance_(1981).jpg): split raked screen, separate medical body, projecting roof brow, twin corner vents, low headlamps, central grille, steps and rear doors. · MILITARY-MODEL-REFERENCES.md

  - [Production ambulance photographed by Steve Glover, 1981 vehicle](https://commons.wikimedia.org/wiki/File:Land_Rover_101_Forward_Control_Ambulance_(1981).jpg): split raked screen, separate medical body, projecting roof brow, twin corner vents, low headlamps, central grille, steps and rear doors.

• [Dunsfold Collection's prototype ambulance](https://dunsfoldcollection.co.uk/collection/101-forward-control-ambulance/): useful side/body reference; its large overhead grille differs from the production front used here. · MILITARY-MODEL-REFERENCES.md

  - [Dunsfold Collection's prototype ambulance](https://dunsfoldcollection.co.uk/collection/101-forward-control-ambulance/): useful side/body reference; its large overhead grille differs from the production front used here.
