Named model · Santana · Santana 109 Militar range from the late 1960s; ambulance bodies in service into the 2000s

Santana Ambulance

The Spanish Army's Santana 109 Militar ambulance: a long-wheelbase Santana-built Land Rover with a full-width hard box body, twin rear doors carrying red crosses on white panels, roof beacons and stretcher accommodation. It served the Ejército de Tierra's medical units alongside the rest of the Santana military fleet from the 1970s until well into the 2000s.

Special · AmbulancesMilitary · Spain

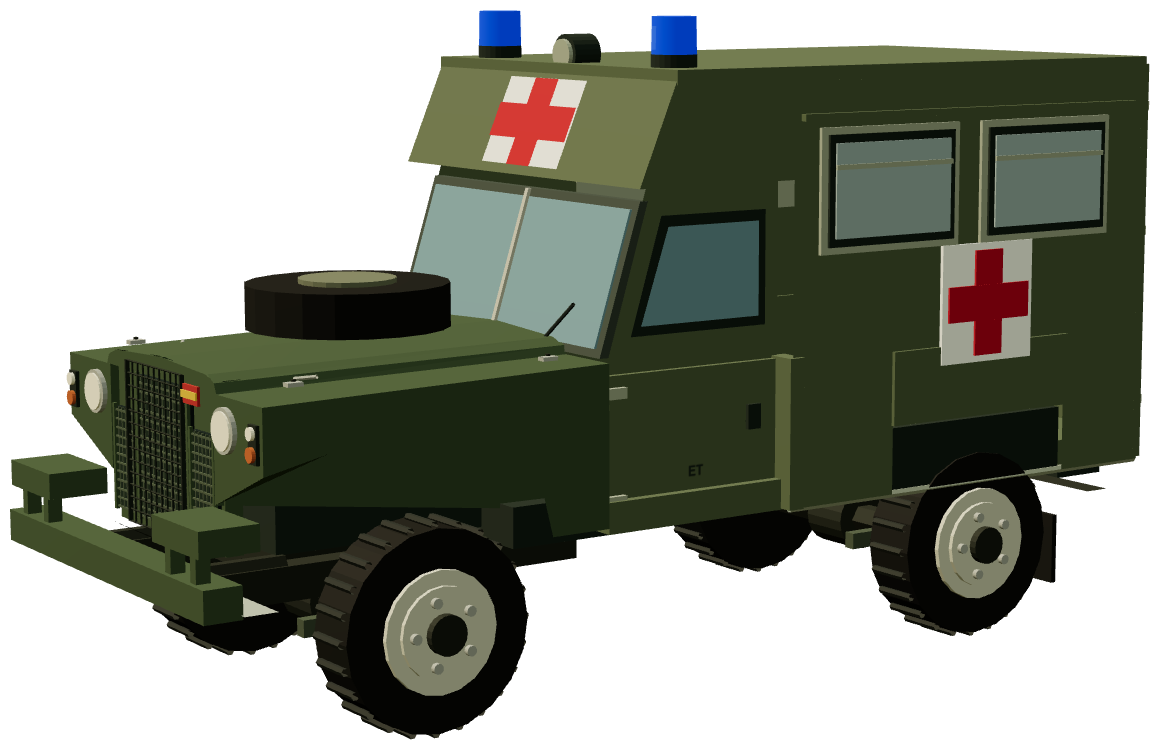

Santana Ambulance — front three-quarter render

Factory colours

Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.

History

Santana Motor, founded at Linares in the province of Jaén as Metalúrgica de Santa Ana in 1956, began building Land Rovers under licence in 1958 and quickly became the Spanish state's default supplier of cross-country vehicles. The Guardia Civil, the Policía Armada, the Ministry of Public Works, the national telephone company and all three armed services bought Santanas in quantity, and it was in those hands that the type earned its reputation for toughness. From 1969 Santana also developed a dedicated military line, beginning with the short-wheelbase 88M — later marketed as the Ligero — and extending to long-wheelbase 109-inch models, with purpose-built variants for ambulance work, signals, deep wading and machine-gun carriage.

The ambulance was built on the 109-inch chassis with a full-width hard body, considerably wider and taller than the standard station wagon, giving room for stretcher racks and a medical attendant. Access is by a pair of full-height rear doors, painted with the Geneva red cross on a white ground, with a further cross panel on each side; sliding side windows light the compartment, and roof-mounted amber beacons were fitted for road use. The cab retains the ordinary Santana military front end, complete with the heavy front bumper and towing eyes of the military range. Vehicles wore Ejército de Tierra registration plates in the ET series — the example photographed here carries ET 66904 and a Sanidad Militar shield on the cab door.

Mechanically these were standard Santana 109s, using the 2,286 cc four in petrol or diesel form and, in later production, the 2.5-litre unit that succeeded it. Their long service reflects how few purpose-designed military ambulances Spain bought in the period: the Santana box-body remained the army's all-terrain ambulance for decades, and only in recent years has the Ejército de Tierra put its ageing ambulance fleet through wholesale replacement with modern road, all-terrain and armoured tactical medical vehicles. Retired Santana ambulances have passed into private and collector hands, and several are preserved in Spain.

Imagery

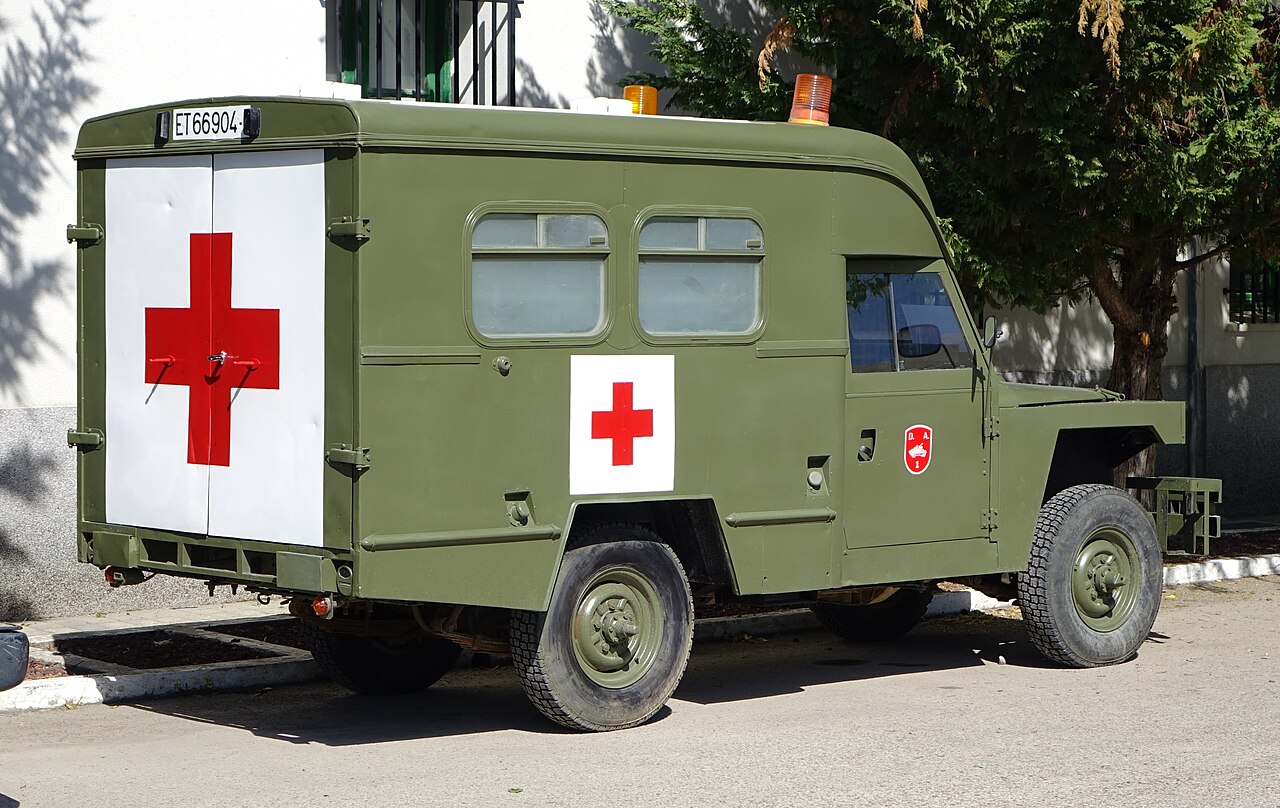

Spanish Army Land Rover Santana 109 ambulance, registration ET 66904 — olive green box body with red cross panels, twin rear doors and amber roof beacons
Spanish Army Land Rover Santana 109 ambulance, registration ET 66904 — olive green box body with red cross panels, twin rear doors and amber roof beacons Outisnn · CC BY 4.0 (Attribution) ↗

Registry record

Manufacturer
Santana Motor S.A., Linares (Jaén), Spain
Manufactured
Santana 109 Militar range from the late 1960s; ambulance bodies in service into the 2000s
Modifier / coachbuilder
Bodied to Spanish Army (Sanidad Militar) requirement
Engine type
2,286 cc Santana inline-four (2.25-litre petrol or diesel); 2.5-litre diesel in later vehicles
Country of origin
Spain
Status
withdrawn from front-line service as the Ejército de Tierra renewed its medical fleet; preserved and privately owned examples survive

Catalogue data

Record kind
Named model
Model line
Santana
Wheels
4

Base catalogue fields are exported from the Difflocked game. In-game physics values are arcade tuning, not certified historical measurements, and are deliberately not shown as specifications here.
