Series IIA Forward Control

History

Launched in 1962, the Series IIA Forward Control was Rover's answer to customers who wanted a genuine light truck with Land Rover go-anywhere ability. By seating the driver in a new cab above and ahead of the engine on a reinforced 109-inch Series IIA chassis, the load bed grew to take a rated 30 cwt (about 1.5 tonnes) on the road - roughly double a normal 109's payload - on slightly larger 9.00x16 wheels. The high cab gave the model its unmistakable silhouette, with headlamps mounted high in the front panel and curved mudguards over the rear wheels, the quickest way to tell a IIA from the later IIB with its lowered lamps.

At launch the only engine was the familiar 2.25-litre petrol four, which left the heavy truck badly underpowered; the 2.6-litre six-cylinder was soon offered, mainly for export, and a diesel was nominally available but found almost no takers. Silodrome's production breakdown records 2,091 four-cylinder, 1,097 six-cylinder and just 5 diesel vehicles - 3,193 in all, though 'fewer than 2,500' is also commonly quoted for the type. The combination of modest power, a high centre of gravity and narrow standard-width axles under a tall, heavily-laden body earned the IIA FC a reputation for feeling top-heavy, and sales stayed thin across its four-year run.

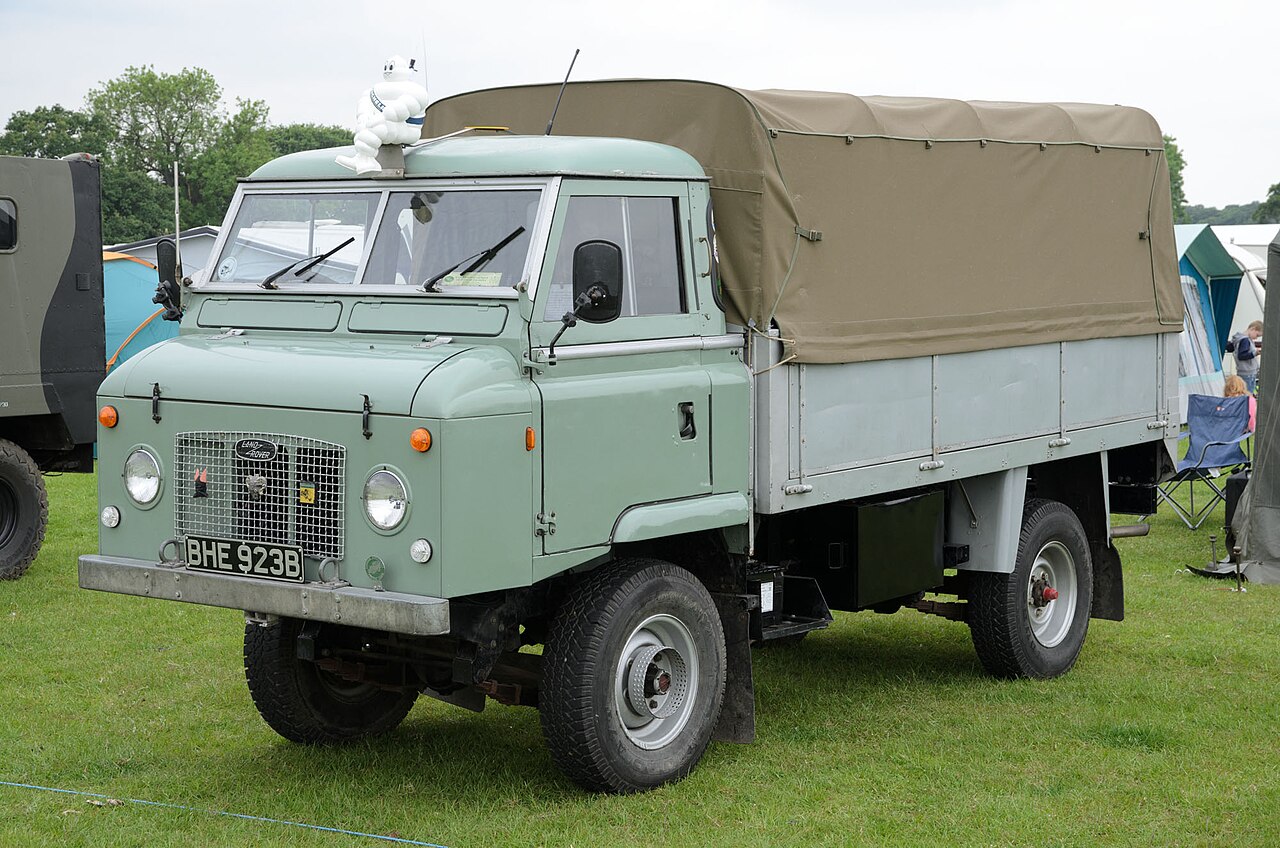

Rover answered the criticism in 1966 with the Series IIB Forward Control: wheelbase stretched to 110 inches, tracks widened four inches on heavy-duty ENV axles, headlamps lowered and the diesel and six-cylinder properly integrated. The IIB inherited the concept until 1972, when Land Rover left the civilian forward-control market to concentrate on the military 101. Worked hard as tippers, fire appliances and drop-side lorries, few IIA Forward Controls survive, and the type is now one of the rarest factory Land Rovers - the registry's example wears the high headlights and curved rear mudguards that define it.

Imagery

Registry record

Manufacturer

Rover Company (Solihull)

Manufactured

1962-1966 (replaced by the Series IIB Forward Control)

Engine type

2.25 L petrol inline-four; 2.6 L petrol inline-six (mainly export); 2.25 L diesel (5 built)

Production run

3,193 vehicles (2,091 four-cylinder petrol / 1,097 six-cylinder / 5 diesel, per Silodrome); 'fewer than 2,500' is also commonly quoted

Country of origin

United Kingdom

Status

out of production since 1966; few survivors

Catalogue data

Record kind

Named model

Family

series-forward-control

Wheels

4

Nominal wheelbase

109″

Base catalogue fields are exported from the Difflocked game. In-game physics values are arcade tuning, not certified historical measurements, and are deliberately not shown as specifications here.

Related base model variants

• Series IIB Forward Control — Series IIB Forward Control 110″ · Forward cab & canvas load bed

Sources & citations

Researched sources

• A Brief History of the Land Rover Series 2, 2A and 2B FC (IIA FC 1962-1966; production 2,091 four-cylinder, 1,097 six-cylinder, 5 diesel; 30 cwt payload; 9.00x16 wheels; IIB improvements) ↗ — Silodrome (accessed 2026-09-10)
• The Land Rover History: Forward Control IIA and IIB (IIA launched 1962, single 2.286 L petrol at launch; IIB 1966 with lengthened wheelbase, widened tracks, lowered headlamps; 30 cwt road / 25 cwt cross-country; few survive) ↗ — Winwaed (accessed 2026-09-10)
• Series Land Rover paint schemes (standard Land Rover colour range of the early-mid 1960s: bronze green, pastel green, mid grey, marine blue, limestone, poppy red) ↗ — expeditionlandrover.info (TeriAnn Wakeman) (accessed 2026-09-10)

Catalogue references

• User-specified IIA/IIB differences: high headlights and curved rear mudguards on IIA, low headlights and square rear mudguards on IIB.
